IMEON Lithium battery

Since 2013, IMEON ENERGY manufactures solar inverters for self-consumption with batteries. Now, after five years of partnerships with the world’s leading battery manufacturers, IMEON is commercializing its own lithium modules as a result of strategic collaboration with Herewin Technology. The combination of inverter and battery from IMEON is designed for optimum performance and service life.

IMEON Lithium battery
5 (100%) 324 votes

Aim for autonomy

IMEON ENERGY lithium batteries, the result of a strategic collaboration with Herewin Technology, are the solution to store the kWh produced by your own solar installation!

RELIABLE AND ROBUST

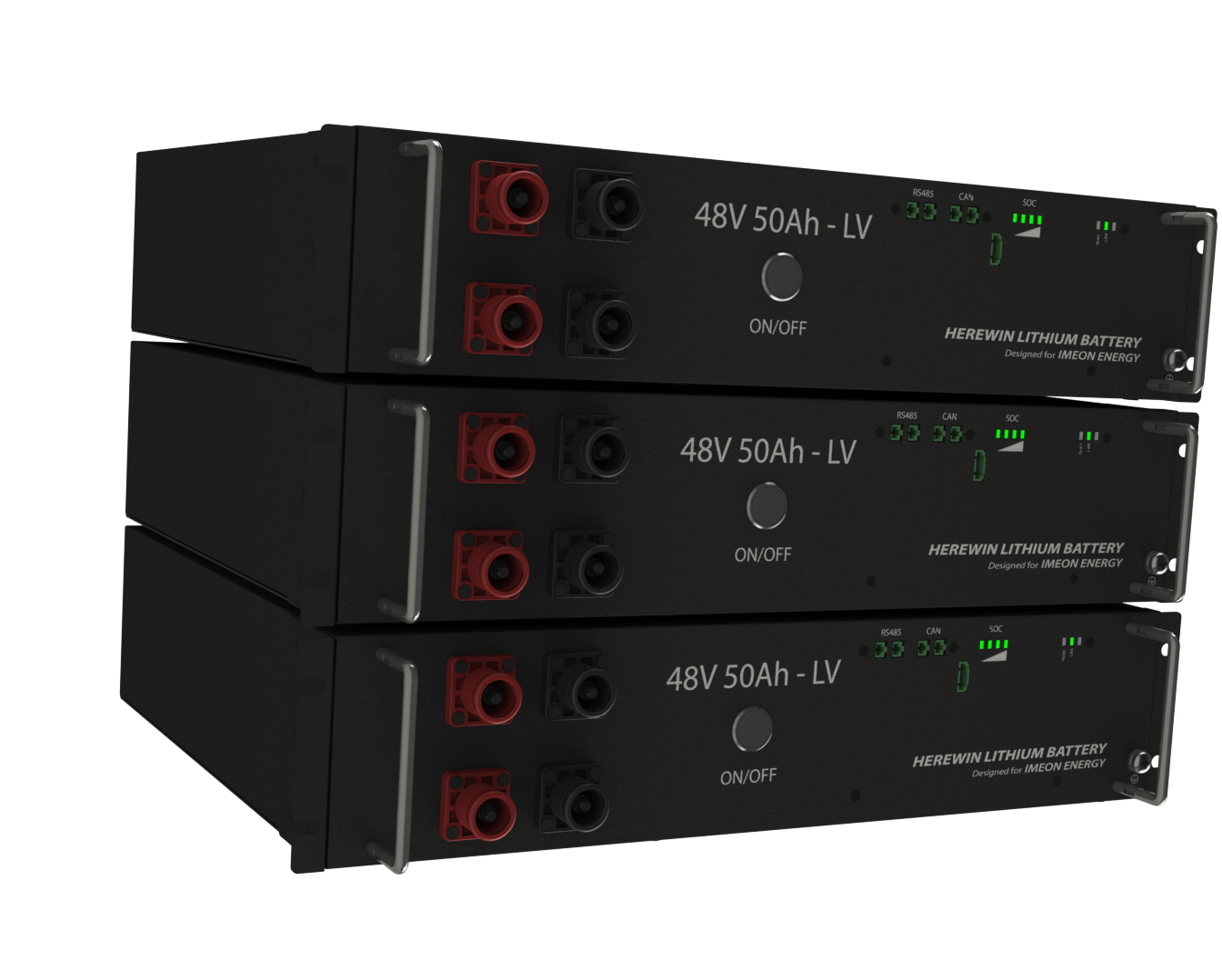

The IMEON 48V50Ah-LV battery module is built using the latest generation lithium iron phosphate cells. These cells allow the battery module to reach a lifetime greater than 5000 cycles. Not requiring specific maintenance, the IMEON 48V50Ah-LV battery is a wise choice to obtain a kWh at the best price throughout the lifetime of your installation. Coupled with an IMEON inverter and connected to the internet, the 48V50Ah-LV battery module has a warranty of up to 10 years.

IMEON Battery 48V50Ah-LV Technical specification

Download

Technical Specification

  • Total energy

    2.4 kWh

  • Usable energy

    2.2 kWh

  • Capacity

    50 Ah

  • Nominal voltage

    48 V

  • Voltage range

    37.5 V – 57 V

  • Nominal charge current

    25 A

  • Nominal discharge current

    25 A

  • Cycle life at 90% discharge

    5000

  • Cycle life at 80% discharge

    6000

  • Cycle life at 70% discharge

    7000

General specifications

  • Dimensions in mm (w * d * h)

    450 * 360 * 100

  • Weight

    25 Kg

  • Communication ports

    CAN, RS485

  • Type of cells

    LiFePO4 (Lithium Fer Phosphate)

  • IP rating

    IP20

  • Operating temperature range

    0°C to +50°C

  • Storage temperature range

    -20°C to +60°C

  • Guarantee

    Up to 10 years (see IMEON ENERGY guarantee conditions)

Where can I find an IMEON reseller?

IMEON Lithium batteries are procurable through a network of more than 30 distributors worldwide, covering nearly 70 countries. These partners are selected for their competence and capacity to provide you with an outstanding service.
