IMEON X-Trem ESS

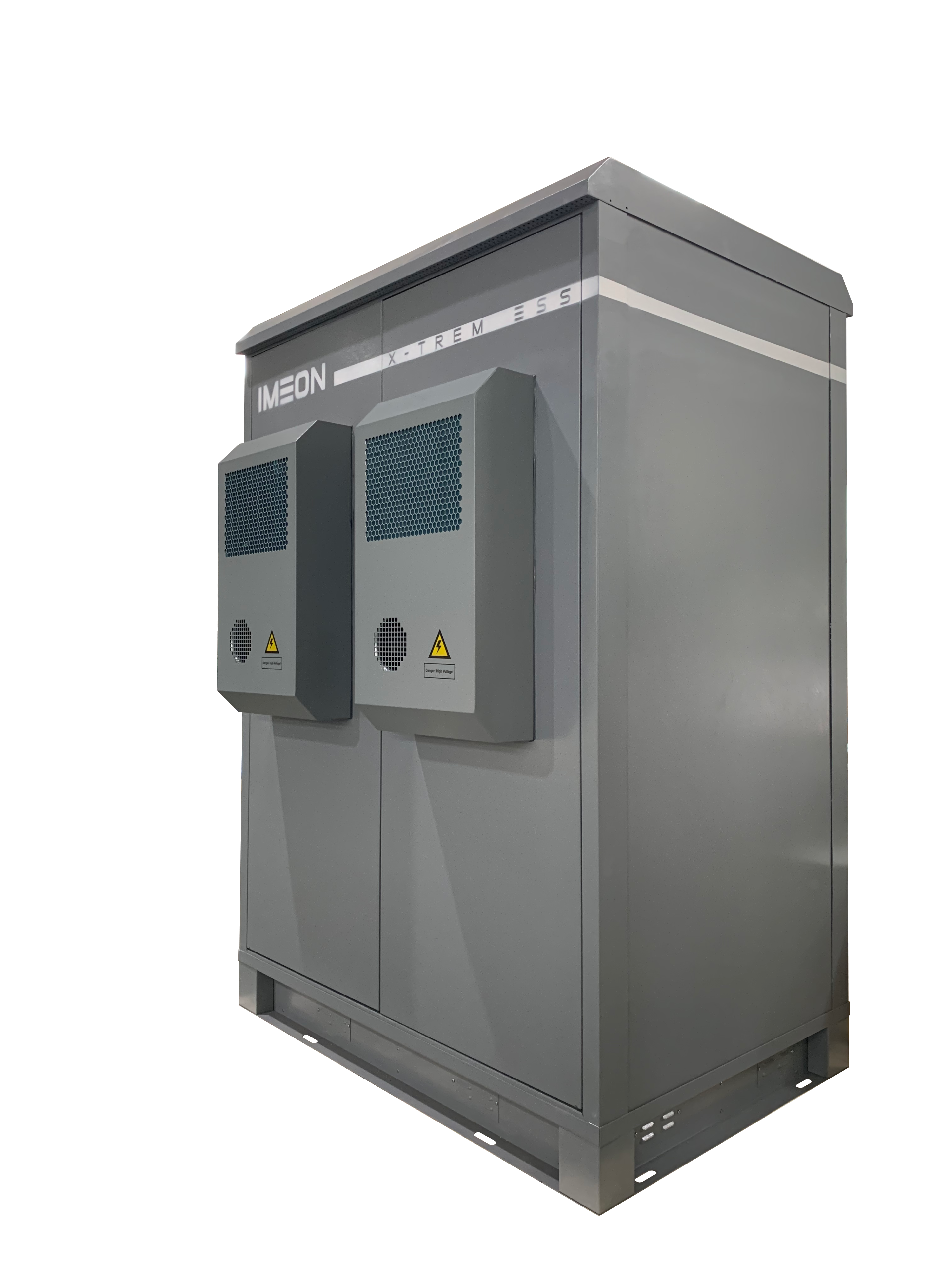

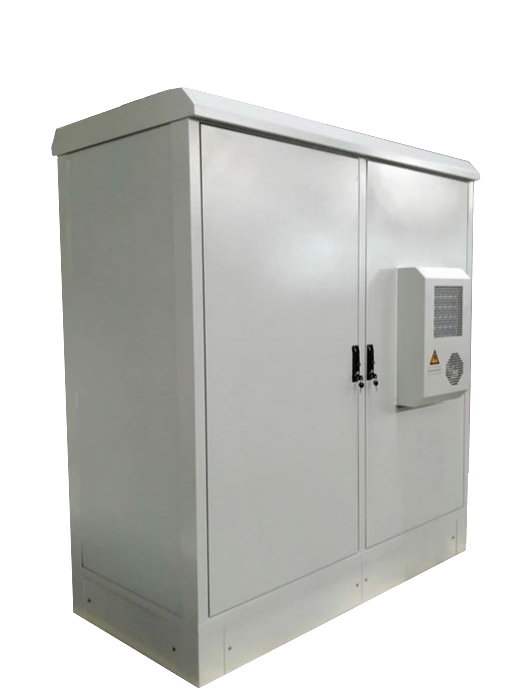

X-Trem ESS is an all-in-one system for outdoor installation. It is perfectly adapted to extreme climatic conditions and integrates, in one single cabinet, all the components required for the optimal operation of a solar energy system. With output powers from 3 kW to 60 kW and parallel operation feature, IMEON X-Trem ESS can be used for electrifying small and large isolated sites as well as installations connected to the public electricity distribution network.

  • PV power from 2 kWp to 72 kWp
  • Energy storage from 7.2 kWh to 125 kWh
  • Up to 4 units can be paralleled
  • Warranty up to 10 years
  • Ultra-simplified installation

Robust all-in-one cabinet!

The IMEON X-Trem ESS solution is suitable for extreme weather conditions!

Modular

For installations from 27 kW up to several MW, IMEON ENERGY can study several tailor-made solutions to meet specific demands. The proposed solutions can meet different types of needs: electrification of isolated sites, solar installations for self-consumption with batteries (connected to the grid), peak-shaving, retrofit of existing solar installations, etc… Do not hesitate to contact us to explain your needs.

Extreme environments

X-Trem ESS, developed by IMEON ENERGY’s R&D teams, is an “all-in-one” solution integrated in an air-conditioned cabinet allowing implementation in places with challenging climatic or environmental conditions (salt air, dust, heat). The optimal temperature maintenance system allows the power electronics and batteries to be used in adequate conditions to optimize the life of the various components of the solution.

OS. One

IMEON ENERGY’s X-Trem ESS solution, dedicated to solar applications involving energy self-consumption with the use of batteries, integrates the OS. ONE operating system. Thanks to its intuitive interface, the configuration of the complete system is ultra-simplified. The installer can access and change parameters such as the priorities for the use of solar energy and the battery’s permitted depth of discharge quickly and intuitively. OS. ONE can be accessed from a computer, tablet or smartphone via WiFi or Ethernet.

Technical Specification IMEON X-Trem ESS

Download

X-Trem 27

X-Trem 60

X-Trem 120

X-Trem 180

X-Trem 240

GRID

Nominal Power

27 kW

60 kW

120 kW

180 kW

240 kW

Voltage / Frequency

3/N/PE, 230/400 Vac / 50 Hz, 60 Hz

Smart Meter

On request

Grid services

Frequency regulation / Voltage regulation / Peak Shaving

SOLAR

Max. installed power

36 kWc

72 kWc

144 kWc

216 kWc

288 kWc

Number of MPPT entry(s)

6

6

12

18

24

Voltage range MPPT

380 – 750 Vdc

200 – 800 Vdc

200 – 800 Vdc

200 – 800 Vdc

200 – 800 Vdc

Max. current

18 A

28 A

50 A

78 A

110 A

Max. voltage

850 Vdc

1000 Vdc

1000 Vdc

1000 Vdc

1000 Vdc

BATTERY

Cell type

Lithium Iron Phosphate (LiFeP04)

Stored energy

57.6 kWh

125 kWh

250 kWh

375 kWh

500 kWh

Voltage range

45- 54 Vdc

392 – 504 Vdc

392 – 504 Vdc

392 – 504 Vdc

392 – 504 Vdc

Max. load power

27 kW

60 kW

120 kW

180 kW

240 kW

Recommended current

0.5 C

Maximum current

1 C

Max. load capacity

98 %

Battery charging

Configurable

Battery discharge

Configurable

Number of cycles*

6000

8000

BACK-UP

Availability

Standard

Option

Transfer time

13 ms

2 s

Nominal power

27 kW

60 kW

120 kW

180 kW

240 kW

Voltage / Frequency

3/N/PE, 230/400 Vac, 50 Hz, 60 Hz

Rated current (per phase)

39 A

90 A

180 A

270 A

360 A

ELECTRICAL PROTECTIONS

Grid

Differential circuit breaker, Lightning arrester

Solar

Disconnector(s), fuse(s), lightning arrester(s)

Battery

DC circuit breaker

Back-up

Earth leakage circuit breaker, source selector switch

GENERAL SPECIFICATIONS

Protection class

IP 55 (outdoor or indoor installation)

Dimensions (mm)

2300*1600*1100mm

2300*1600*1100mm

2300*1600*1100mm (x2)

2300*1600*1100mm (x3)

2300*1600*1100mm (x4)

Weight

1309kg

1898kg

2*1898 kg

3*1898 kg

4*1898 kg

Technology

TL (without transformer)

Communication

CAN / Dry contact / Modbus / ETH / LTE option / Over-The-Air update

Terms and conditions of use

Humidity: 0 to 100 %, Temperature: -30 to + 60°C

Warranty

5 years, optional extension to 10 years
